Place of Origin : Hubei, China
Price : $22,000/units 1-9 units
Product name : Dust suppression vehicle
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders
Vehicle technical parameters | | | | | ||||
product name | Pure electric green Sprinkler truck | product model | HTT 5181GPSBEV | | ||||
gross mass (Kg) | 18000 | Production address | Suizhou City, Hubei Province | | ||||
Rated load mass (Kg) | 9970,9905 | outline dimension (mm) | 9345,8845,8345×2550,2500×3250,3150,3100 | | ||||
curb weight (Kg) | 7900 | axle weight | 6500/11500 | | ||||
Number of cab members (person) | 2,3 | number of axles | 2 | | ||||
Approach angle / departure angle of (°) | 12/11,12/14 | Front suspension / rear suspension (mm) | 1445/1900,1445/2400 | | ||||
wheel base | 5000,4500 | Top vehicle speed (Km/h) | 89 | | ||||
Upper volume | 13.5 | | | | ||||
Chassis technical parameters | | | | | ||||
Chassis model | LZ5180XXYM3AZBEV12T | Chassis brand | Pure electric van transport truck chassis | | ||||
number of axles | 2 | Number of tires | 6 | | ||||
tyre size | 295/80R22.5,10.00R20 | | | | ||||
Number of steel plate spring sheets | 11/12+9 | | | | ||||
front gauge (mm) | 2020 | rear track (mm) | 1860 | | ||||
Fuel types | Pure electric | ABS | have | | ||||
Chassis wheelbase | 5300mm | Battery brand | Ningde era | | ||||
battery capacity | 175 Degrees | Charging time | About half an hour | | ||||
Battery category | lithium iron phosphate | Full range | 145 KM | | ||||
Upload consumes power per hour | 40-50KWH | Charging pile power is recommended | 120KW | | ||||
engine type | | displacement (ml) | power (Kw) | horsepower | ||||
TZ342XSSFY02 | | | 180 | 245 | ||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | |
![]() |

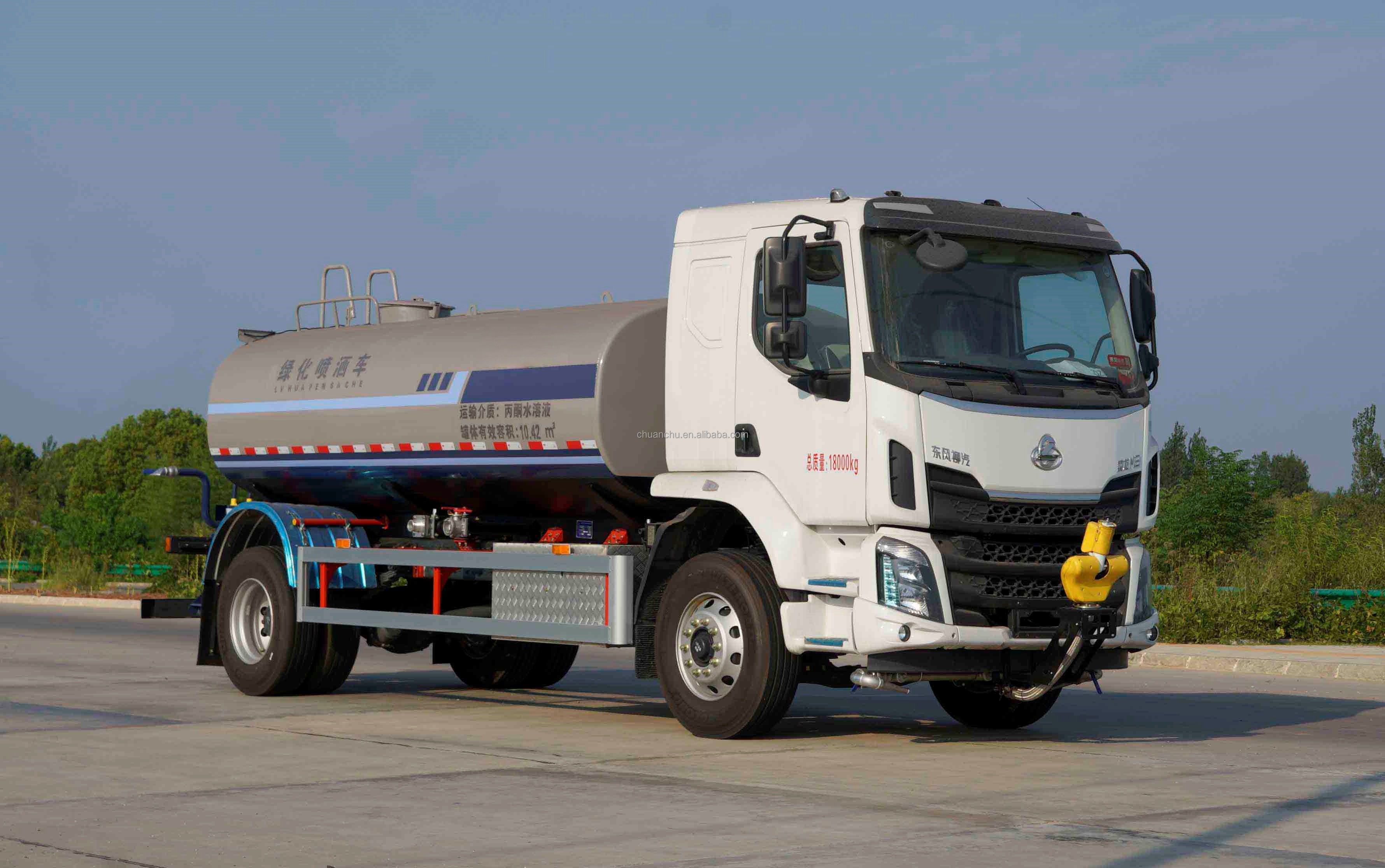

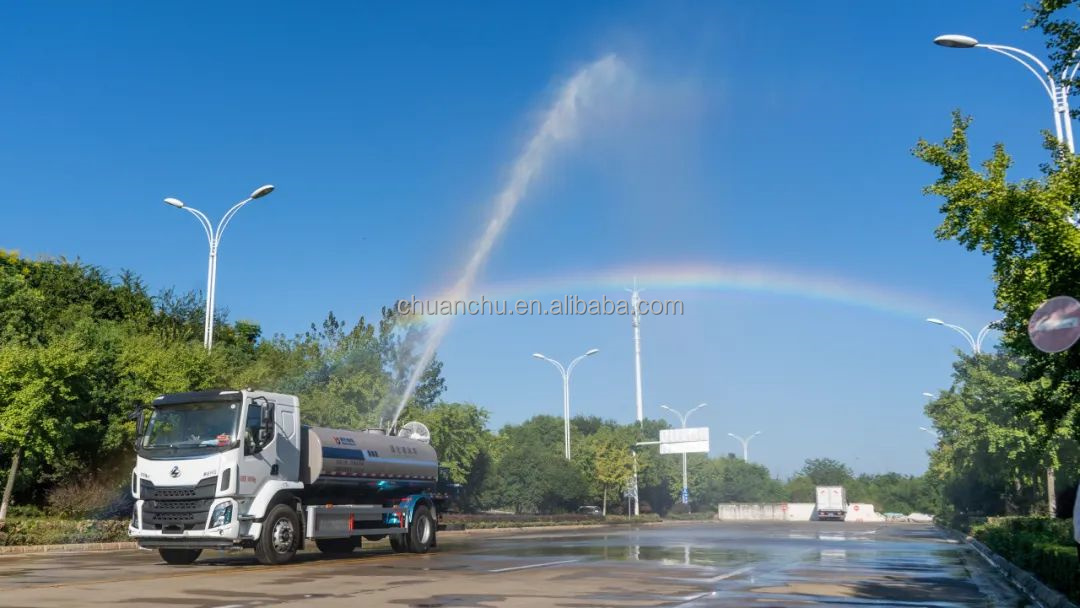

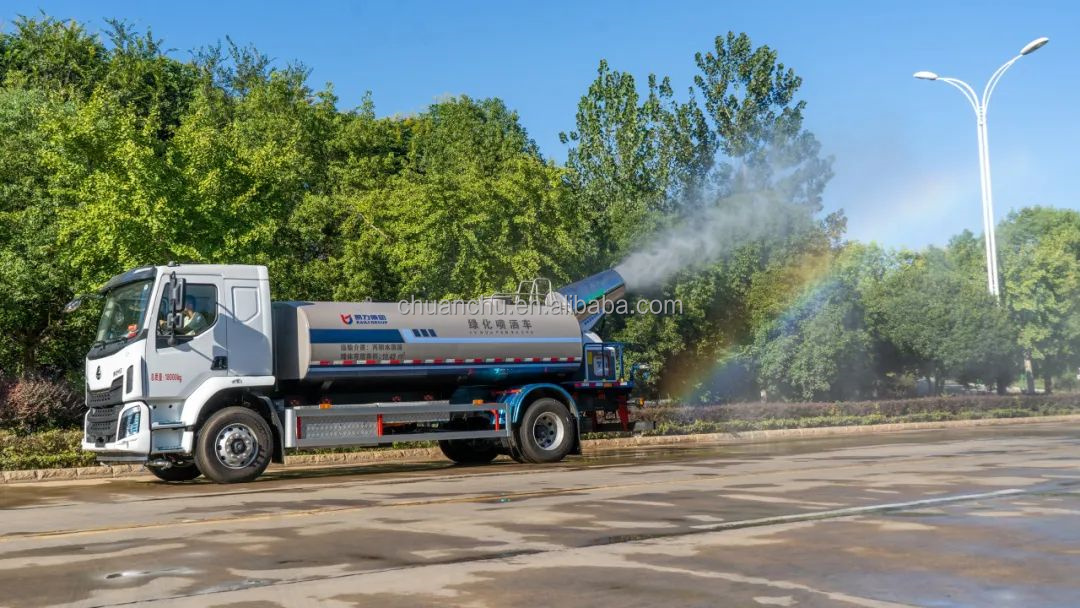

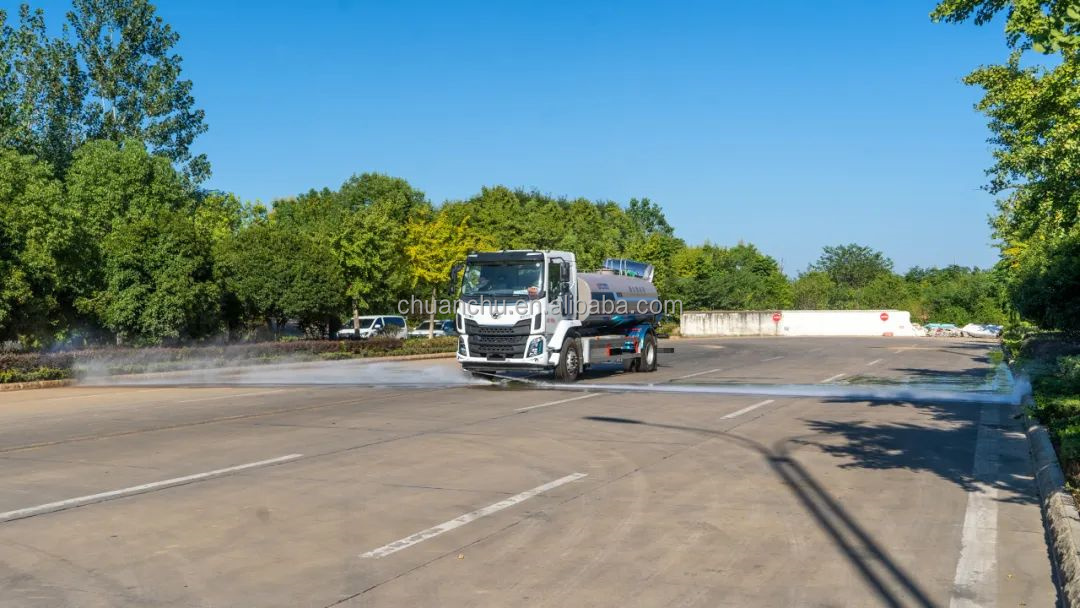

4x2 Diesel Electric Dust Suppression Water Sprinkler Tanker Truck For Street Images |
