Place of Origin : Hubei, China
Price : $23,000/units 1-9 units
Product name : Dust suppression vehicle
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders
Vehicle technical parameters | | | | | ||||
product name | Pure electric self-handling type garbage truck | product model | HTT 5040ZZZBEV | | ||||
gross mass (Kg) | 8995 | Production address | Suizhou City, Hubei Province | | ||||
Rated load mass (Kg) | 2190,2000,1700 | outline dimension (mm) | 6510×2190×2635 | | ||||
curb weight (Kg) | 6610,6800,7100 | axle weight | 3000/5995 | | ||||
Number of cab members (person) | 3 | number of axles | 2 | | ||||
Approach angle / departure angle of (°) | 21/16,21/17 | Front suspension / rear suspension (mm) | 1123/2087,1123/1587 | | ||||
wheel base | 3300,3800 | Top vehicle speed (Km/h) | 90 | | ||||
Chassis technical parameters | | | | | ||||
Chassis model | EQ1090KACEV | Chassis brand | Dongfeng | | ||||
number of axles | 2 | Number of tires | 6 | | ||||
tyre size | 8.25R16LT 14PR,9.5R17.5 14PR | | | | ||||
Number of steel plate spring sheets | 8/10+7 | | | | ||||
front gauge (mm) | 1760 | rear track (mm) | 1630 | | ||||
Fuel types | Pure electric | ABS | have | | ||||
Chassis wheelbase | 5300mm | Battery brand | Ningde era | | ||||
Maximum power of the chassis motor | 160KW | Rated power of the mounted motor | 80/145KW | | ||||
Upload consumes power per hour | 40-50KWH | battery capacity | 158kwh | | ||||
cell voltage | 512V | | | | ||||
engine type | | displacement (ml) | power (Kw) | horsepower | ||||
TZ290XSZ | | | 145 | 197 | ||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | |
![]() |

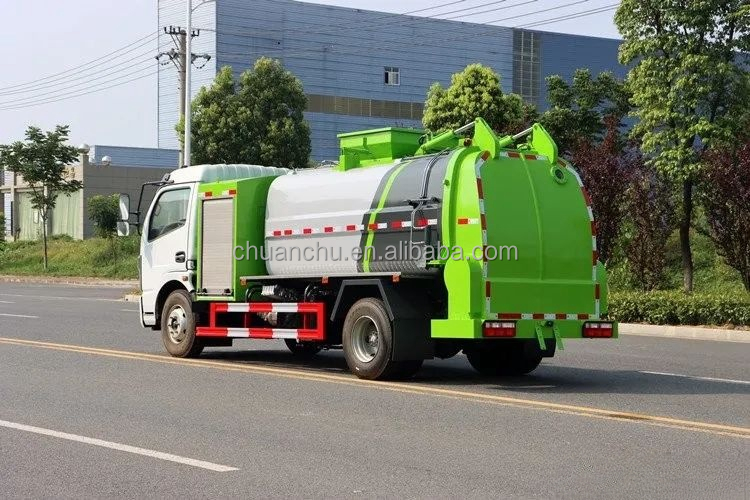

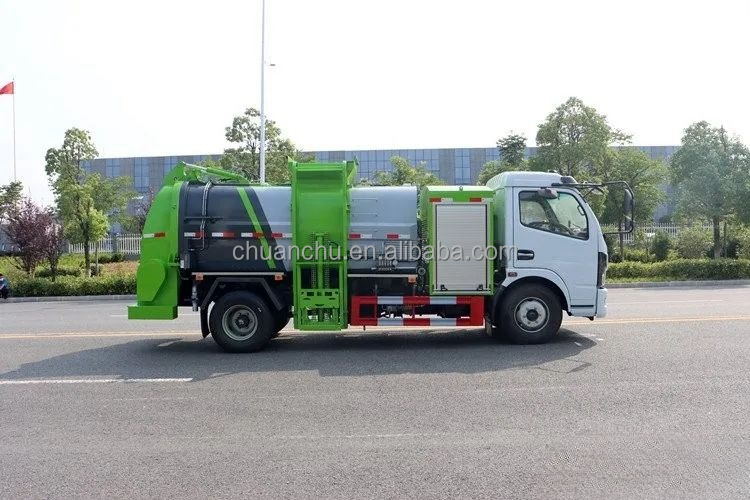

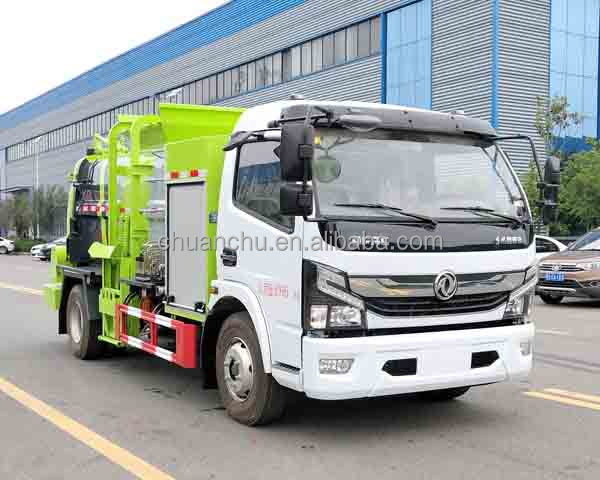

Dongfeng Capt Pure Electric 5-Square Kitchen Garbage Truck at Eco-Friendly Waste Handling Solutions Images |
