Place of Origin : Hubei, China
Price : $25,000/units 1-9 units
Product name : Dust suppression vehicle
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders
Vehicle technical parameters | | | | | ||||
product name | Pure electric compressed type garbage truck | product model | HTT5125ZYSBEV | | ||||
gross mass (Kg) | 12495 | Production address | Suizhou City, Hubei Province | | ||||
Rated load mass (Kg) | 4340,4150,4030,3950 | outline dimension (mm) | 7680,7390,7450,7500×2430×2630 | | ||||
curb weight (Kg) | 7960,8150,8270,8350 | axle weight | 3745/8750 | | ||||
Number of cab members (person) | 2,3 | number of axles | 2 | | ||||
Approach angle / departure angle of (°) | 20/12 | Front suspension / rear suspension (mm) | 1250/2240,1250/2400 | | ||||
wheel base | 3800 | Top vehicle speed (Km/h) | 90 | | ||||
Chassis technical parameters | | | | | ||||
Chassis model | CL1120JBEV | Chassis brand | Pure electric truck chassis | | ||||
number of axles | 2 | Number of tires | 6 | | ||||
tyre size | 255/70R22.5 16PR | | | | ||||
Number of steel plate spring sheets | 9/10+7 | | | | ||||
front gauge (mm) | 1895 | rear track (mm) | 1802 | | ||||
Fuel types | Pure electric | ABS | have | | ||||
Chassis wheelbase | 5300mm | Battery brand | Ningde era | | ||||
Rated / peak power (kW) | 120/200 | Rated power of the mounted motor | 80 KW | | ||||
Upload consumes power per hour | 40KWH | Rated / peak rotation speed (rpm) | 5730/12000 | | ||||
Rated / peak torque (Nm) | 200/500 | Battery level (kWh) | 142.19 | | ||||
Driving range (km) | 270 | Charging time (min) | 35 | | ||||
engine type | | displacement (ml) | power (Kw) | horsepower | ||||
TZ230XSZ50 | | | 200 | 272 | ||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. | | | | |
![]() |

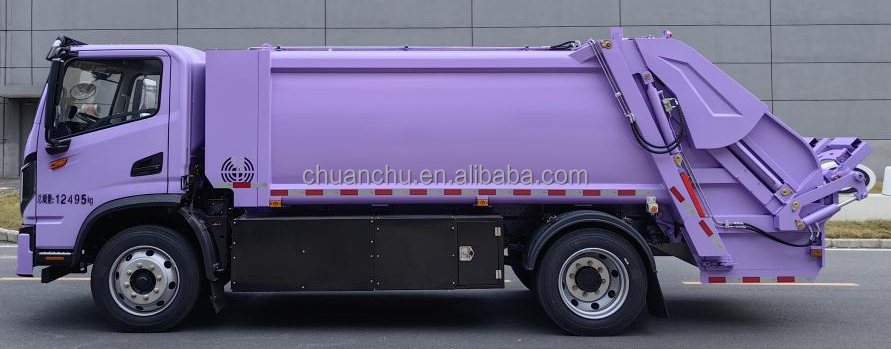

Pure Electric 8-Square Compression Garbage Truck for Environmentally-Friendly Waste Management Images |
