Place of Origin : Hubei, China
Price : $25,000/units 1-9 units
Product name : Dust suppression vehicle
Energy type : Pure Electric
Color : Custom's Requirement
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders
Vehicle technical parameters | | | | |||
product name | Pure electric car unloading type garbage truck | product model | HTT 5320ZXXBEV | |||
gross mass (kg) | 32000 | Production address | Suizhou City, Hubei Province | |||
Rated mass (kg) | 17720,17655,17420,17355,17020,16955 | outline dimension (mm) | 9600,9450,9300X2550,2520X3150,3100,3050 | |||
curb weight (kg) | 14150,14450,14850 | axle weight | 6500 / 6500 / 19000 (2-axis group) | |||
Number of cab members (person) | 2,3 | number of axles | 2 | |||
Approach angle / departure angle of (°) | 20/20,20/21,20/22 | Front suspension / rear suspension (mm) | 1260/1590,1260/1440,1260/1290 | |||
wheel base | 1850+3550+1350 | Top vehicle speed (Km/h) | 90 | |||
Chassis technical parameters | | | | |||
Chassis model | EQ1320GTZEVJ | Chassis brand | Pure electric truck chassis | |||
number of axles | 2 | Number of tires | 6 | |||
tyre size | 11.00R20 18PR,295/80R22.5 18PR,315/80R22.5 18PR | | | |||
Number of steel plate spring sheets | 3/3/-/-,4/4/-/-,9/9/-/- | | | |||
front gauge (mm) | 2040/2040,2020/2020,2060/2060 | rear track (mm) | 1860/1860 | |||
Fuel types | Pure electric | ABS | have | |||
Chassis wheelbase | 1850+3550+1350 | Battery brand | Ningde era | |||
battery capacity | 367KWH | Rated power / rotational speed / torque (kW / r/min / N.m) | 250/1800/1330 | |||
Total battery charge (kwh) | 367.58 | Peak power / rotational speed / torque (kW / r/min / N.m) | 360/3000/2800 | |||
Battery rated total voltage and range (V) | 608.58 | driving range (Km) | 280km |
![]() |

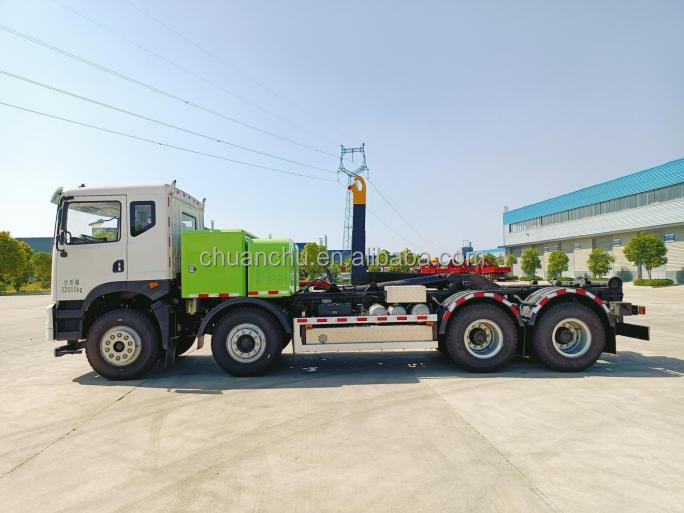

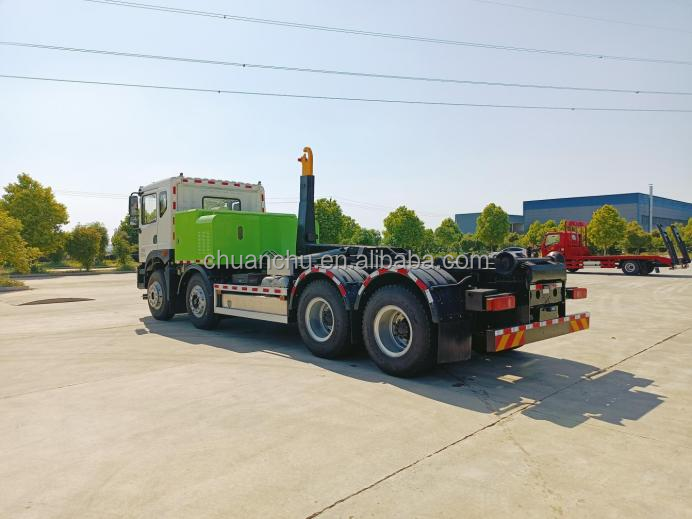

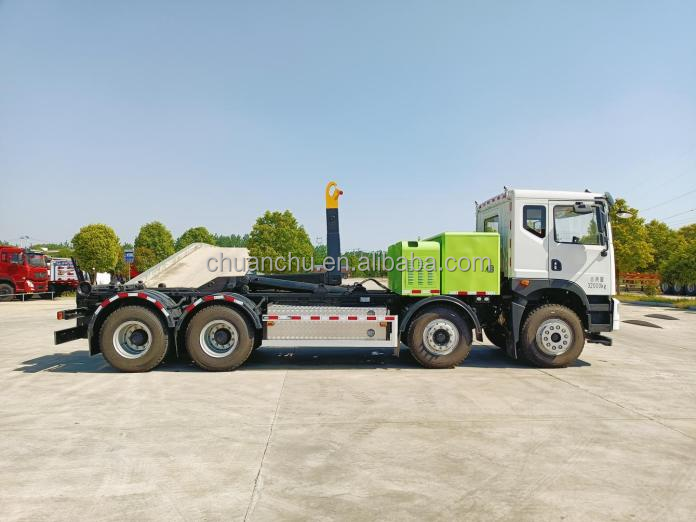

Pure Electric Detachable Hook Arm Garbage Truck The Eco Friendly Solution for Waste Collection Images |
