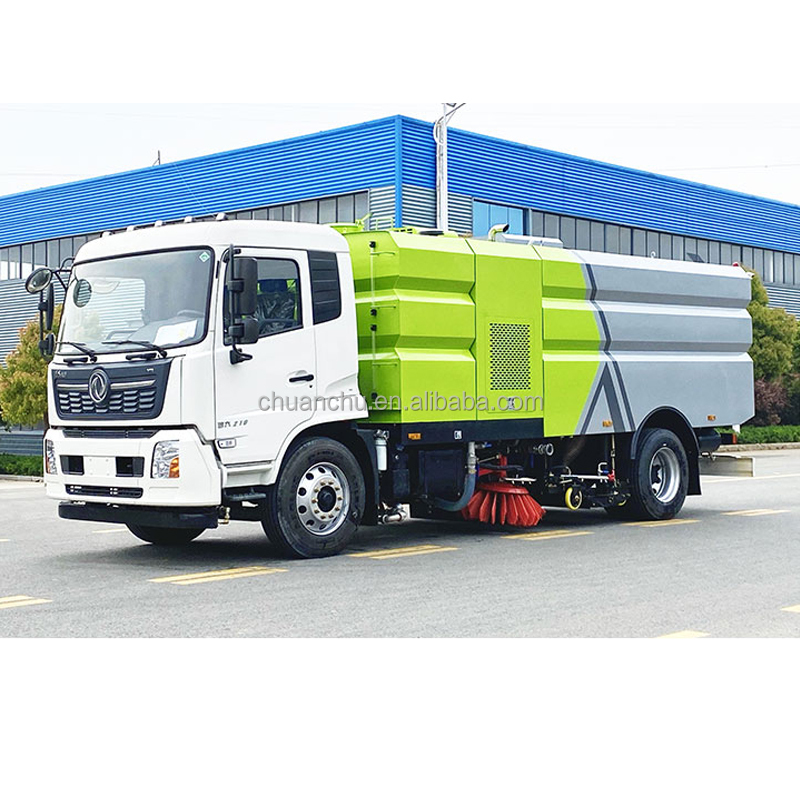

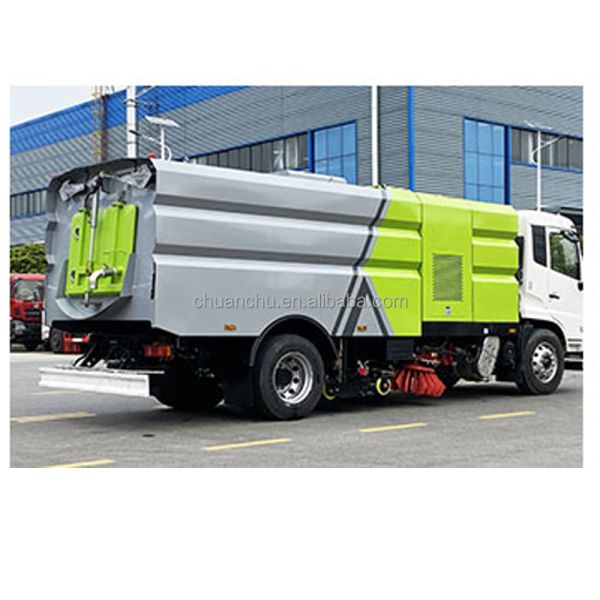

Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area

Product Categories
Hubei Huate Special Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area

Condition : New

Transmission Type : Manual

Emission Standard : Euro 4

Fuel Type : Diesel

Place of Origin : China

After-sales Service Provided : Onsite Installation

Product name : Dust suppression vehicle

Energy type : Pure Electric

Color : Custom's Requirement

Price : $22,000/units 1-9 units

MOQ : 1

Packaging Details : Wooden box

Delivery Time : 7-30 days

Payment Terms : T/T

Supply Ability : Meet large-scale orders

Contact Now

Products Description
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Product Paramenters
Vehicle technical parameters
product name
Washing and sweeping vehicle
product model
HTT 5180TXSD6
gross mass (Kg)
18000
Production address
Suizhou City, Hubei Province
Rated load mass (Kg)
6870,6805,5410,5345,6070,6005,5550,5485
outline dimension (mm)
9350,8850,8550,8250,8050,7750,7500,7350×22480,2500×3130,3080,3100,3160
curb weight (Kg)
11000,12460,11800,12320
axle weight
4350/7645
Number of cab members (person)
2，3
number of axles
2
Approach angle / departure angle of (°)
21/13
Front suspension / rear suspension (mm)
1400/2150,1430/2120
wheel base
3800,3950,4200,4500,4700,5000,5300,5800,5600,5100
Top vehicle speed (Km/h)
98
Chassis technical parameters
Chassis model
DFH1180EX8
Chassis brand
truck chassis
number of axles
2
Number of tires
6
tyre size
10.00R20 18PR,275/80R22.5 18PR
Number of steel plate spring sheets
7/9+6,8/10+8,8/9+6,11/10+8,3/10+8
front gauge (mm)
1876,1896,1920,1950,1914,1934,1980,2000,1815,1860
rear track (mm)
1820,1860,1800,1840
Fuel types
diesel oil
ABS
have
Chassis wheelbase
3300,3850
Water tank / bin
9m³/7m³
effluent standard
Euro 3 4 5 6
Maximum cleaning capacity
56000(㎡/h)
engine type
displacement (ml)
power (Kw)
horsepower
D4.5NS6B190
4500
140
190
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our
personnel in time to solve the problem for you.
Company Profile
Hubei Huate Special Equipment Co., Ltd. is a manufacturer integrating the independent R&D and manufacturing and sales and import & export trading of special truck and truck accessories. It is a “ national high-tech “ enterprise and “ SRDI” enterprise. Our company was founded in February 2009 , located in Suizhou Hubei province which is the hometown of Yan Emperor and ancient music of chimes, and it is the capital of special trucks in China. Huate main products: dangerous goods tank truck series, tank container series, chemical storage tank series, dangerous goods van series, refrigerated truck series, testing vehicle series, emergency rescue vehicle series, engineering vehicle series ,sanitation vehicle series, special vehicle parts series, used truck trading and other subdivision products. We have professional technical team, strong and experienced management team, efficient domestic and overseas sales team . Huate products not only lead the domestic advanced level, but also towards the international market, forming a diversified and serialized product pattern. Huate is driven by innovation , market-oriented and brand-led . It constantly improve product quality and management level, our company has fully passed the GB/T19001-2016 idt ISO9001:2015 quality system certificate and GB/T24001-2016 idt ISO14001:2015 environmental system certificate and GB/T45001-2020 idt ISO45001:2018 occupation health safety system certificate .Our products has passed international 3C compulsory certificate and tank container CCS certificate , with a number of invention patents . We have participated in the drafting of various national standards and industry standards. The company adheres to the business philosophy of "Create industry quality products. Strive to be an industry pioneer" , based on the design and manufacturing of intelligent and digital core components, we provide clients with intelligent solutions. With its differentiation and cost-effective advantages, we provide users with superior and mutually beneficial and win-win cooperation platform. Currently our products have been exported to Africa Middle East Southeast Asia America Europe more than 30 countries , well received by domestic and foreign users with favorable comments .
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Manufacturing Technique
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Certifications
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Customer Photos
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Project Show
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area
Product packaging
Euro 4 Certified and Energy Dongfeng Dolica 8-side Road Sweeper for Dust-free Sweeping in Large Mine Area


FAQ

Q1. Payment term.
T/T ,30% as despite ,and 70% before delivery from factory.
L/C, L/C price is higher than T/T price
We will show you photos and video of the finished truck before you pay the balance.

Q2. Terms of delivery
EXW, FOB, CFR, CIF, DAF ,FCA ,DDU.DAP etc .
We mainly do FOB,CIF,DAF

Q3. Delivery time
Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
(if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to
contract .)

Q4. Quality and warranty
We have Rich experience workers and engineer to control quality before and on production , we strictly follo STATE special trucks
technical specification and safety production specification . we 100% test trucks before delivery.
Our Warranty :12 months
We will provide the spare parts for free in one year.

Q5. How to trust us ?
Our company pass BV factory audit,And you also can arrange a third party inspect our factory.
We have been in this line for over 15 years, dealing with all kinds of trucks.

Q6.Visit our factory
Our factory are in suizhou city,hubei province, china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province,near our factory) .and our driver
will pick up you at wuhan railway station or wuhan tianhe airport.
And if need the invitation letter ,pls send your private information and company information to me.
