Condition : New
Transmission Type : Manual
Emission Standard : Euro 3 4 5 6
Fuel Type : Diesel
Dimensions (L x W x H) (mm) : 6850,7150mm*2160mm*2500
Place of Origin : Hubei, China
After-sales Service Provided : Onsite Installation, Online support, Free spare parts
Color : Custom's Requirement
Warranty : 1 Year
Price : $18,000/units 1-9 units
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders
Vehicle technical parameters | ||||||||
product name | Sprinkler truck | product model | HTT 5120GSSF | |||||
gross mass (Kg) | 11995 | Production address | Suizhou City, Hubei Province | |||||
Rated load mass (Kg) | 6670 | outline dimension (mm) | 6850,7150×2160×2500 | |||||
curb weight (Kg) | 5130 | axle weight | 4200/7795 | |||||
Number of cab members (person) | 2,3 | number of axles | 2 | |||||
Approach angle / departure angle of (°) | 16/11 | Front suspension / rear suspension (mm) | 1130/1920,1130/2220 | |||||
wheel base | 3800 | Top vehicle speed (Km/h) | 110 | |||||
Chassis technical parameters | ||||||||
Chassis model | BJ1128VGJEA-AC1 | Chassis brand | truck chassis | |||||
number of axles | 2 | Number of tires | 6 | |||||
tyre size | 8.25R20 16PR,9.00R20 16PR,9R22.5 14PR | |||||||
Number of steel plate spring sheets | 3/10+8,9/8+6 | |||||||
front gauge (mm) | 1850,1830,1765,1730 | rear track (mm) | 1800,1630 | |||||
Fuel types | diesel oil | ABS | have | |||||
Chassis wheelbase | 3300,3850 | |||||||
effluent standard | Euro 3 4 5 6 | |||||||
engine type | displacement (ml) | power (Kw) | horsepower | |||||
F3.8NS6B156 | 3800 | 115 | 155 | |||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. |
![]() |

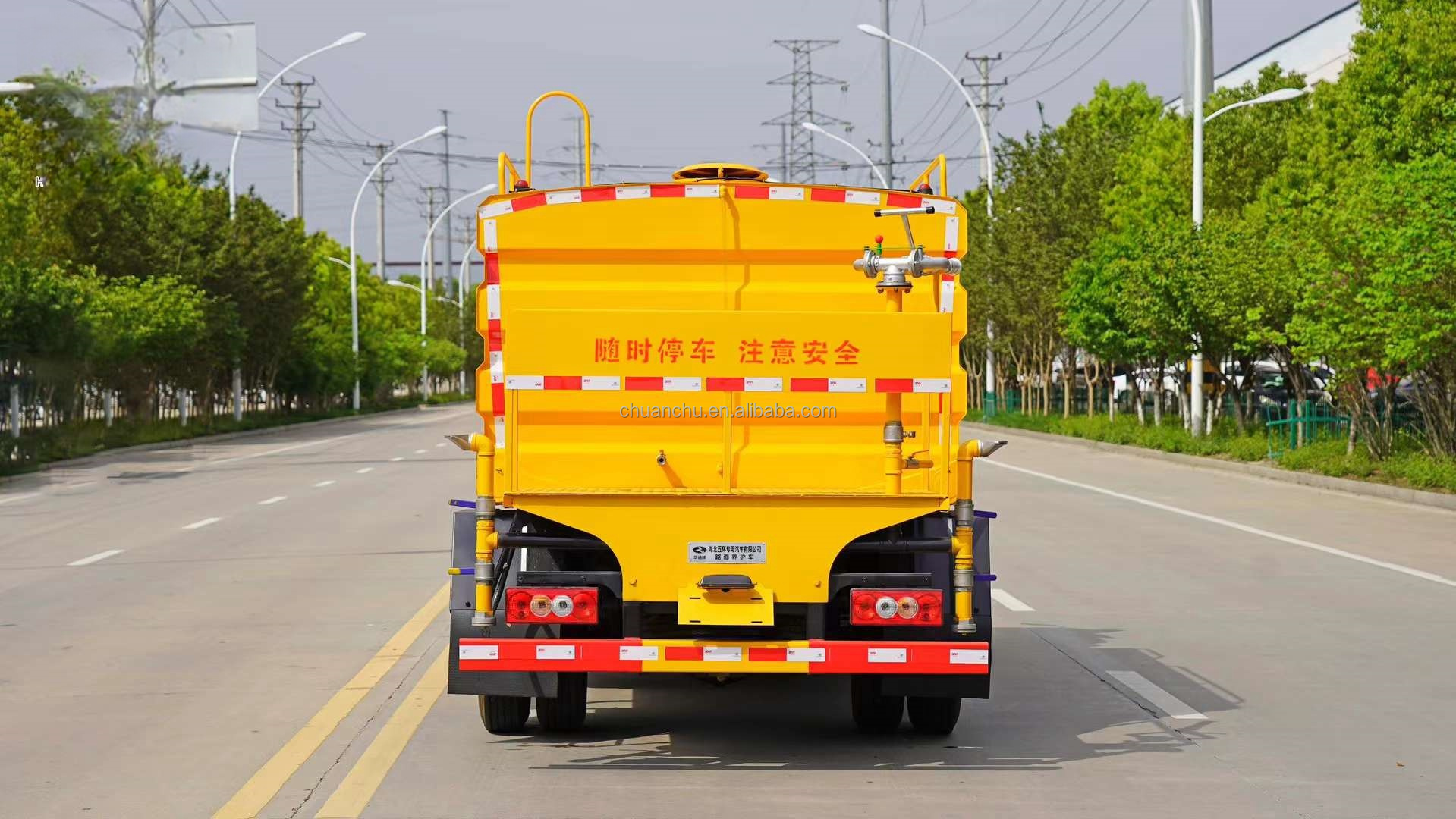

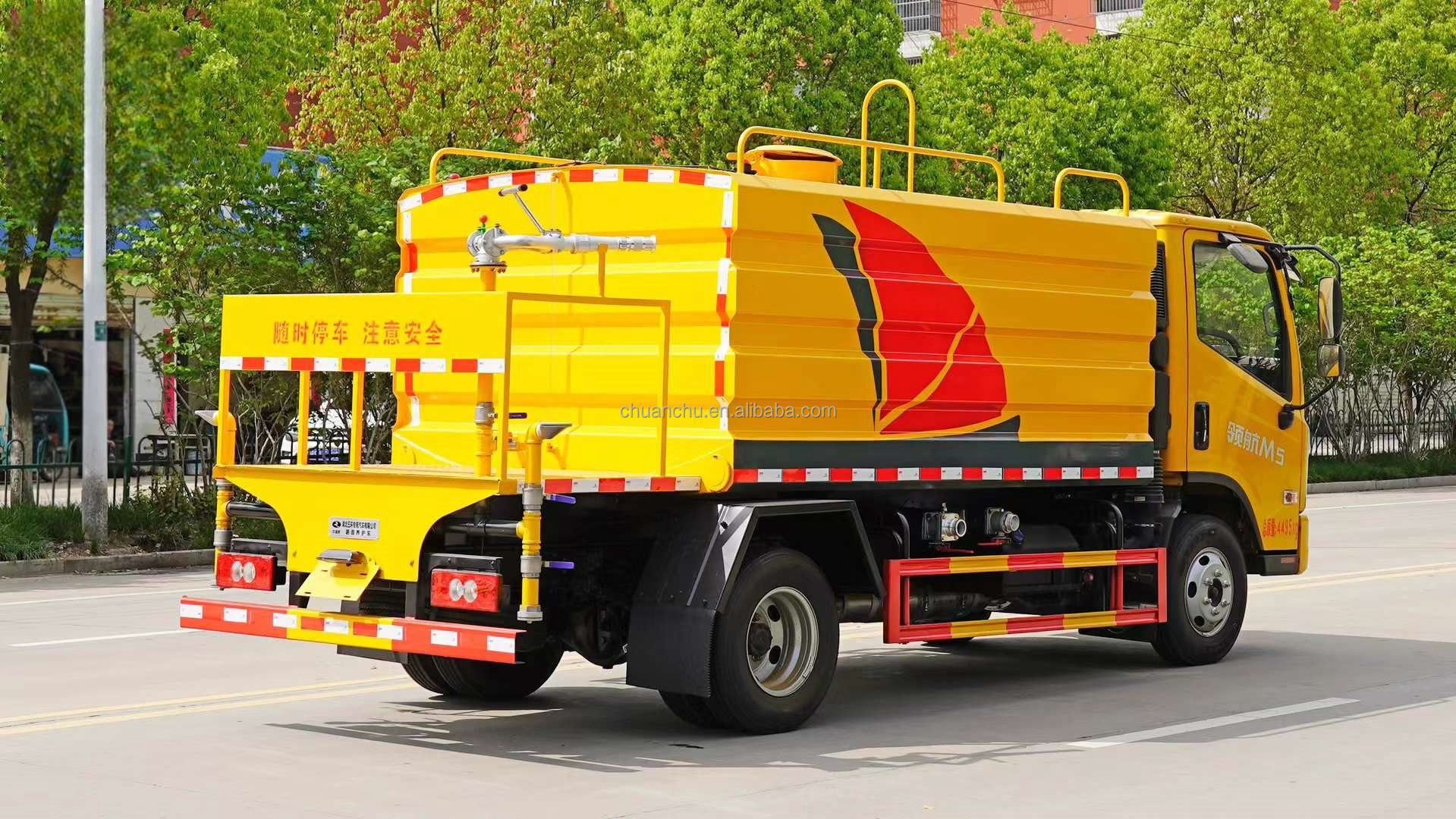

Hot Water Tanker Truck 4x2 6x4 8x4 Water Sprinkler Tank Watering Cart With Custom's Requirement Euro 3 4 5 6 Images |
