Place of Origin : Hubei, China
Product name : hydrogen fuel cleaning sprinkler truck
Energy type : hydrogen fuel
Color : Custom's Requirement
Price : $16,000/units 1-9 units
MOQ : 1
Packaging Details : Wooden box
Delivery Time : 7-30 days
Payment Terms : T/T
Supply Ability : Meet large-scale orders
Vehicle technical parameters | ||||||||
product name | Fuel cell cleaning vehicle | product model | HTT5180GQXFCEV | |||||
gross mass (Kg) | 18000 | Production address | Suizhou City, Hubei Province | |||||
Rated load mass (Kg) | 8020 | outline dimension (mm) | 9260×2250×3050 | |||||
curb weight (Kg) | 9850 | axle weight | 7000/11000 | |||||
Number of cab members (person) | 2,3 | number of axles | 2 | |||||
Approach angle / departure angle of (°) | 10/14 | Front suspension / rear suspension (mm) | 1275/2095 | |||||
wheel base | 3858,3308,3850,3300,3000 | Top vehicle speed (Km/h) | 89 | |||||
Chassis technical parameters | ||||||||
Chassis model | NJL1180ZAFFCEV | Chassis brand | Pure electric truck chassis | |||||
number of axles | 2 | Number of tires | 6 | |||||
tyre size | 295/80R22.5,11.00R20 18PR | |||||||
Number of steel plate spring sheets | 3/4+3 | |||||||
front gauge (mm) | 2080 | rear track (mm) | 1860 | |||||
Fuel types | Pure electric | ABS | have | |||||
Chassis wheelbase | 5300mm | Battery brand | Ningde era | |||||
Rated / peak power (kW) | 120/200 | Rated power of the mounted motor | 80 KW | |||||
Upload consumes power per hour | 40KWH | Rated capacity of the power battery system | 150Ah | |||||
Power battery system rated voltage | 540.96V | Battery level (kWh) | 128.86 | |||||
Driving range (km) | 240 | Charging time (min) | 35 | |||||
engine type | displacement (ml) | power (Kw) | horsepower | |||||
TZ370XS-LKM1302 | 185 | 252 | ||||||
After-sales service: If after-sales problems occur, please contact our customer service personnel in time, and we will contact our personnel in time to solve the problem for you. |
![]() |

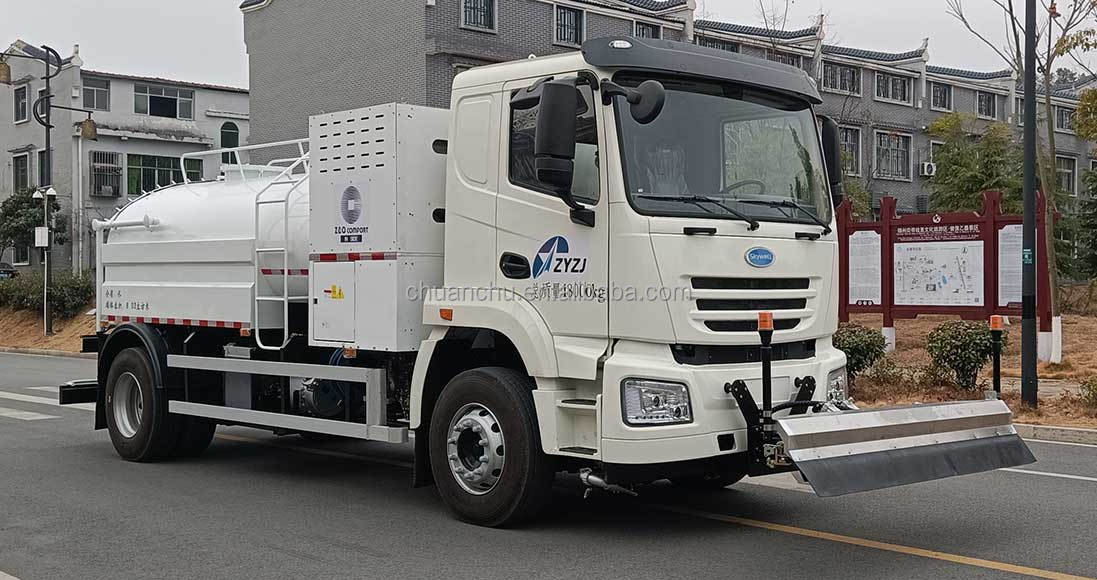

18TON Hydrogen Fuel Sprinkler High Pressure Cleaning Vehicle for Environmentally Friendly Construction Site Cleaning Images |
