OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized

Price : $260-280/pieces

application : oil tank truck

port size : 4inch

warranty : 1 year

place of origin : Hubei, China

model number : HT.QDQ413F-16P

power : Pneumatic

temperature of media : Normal Temperature

brand name : CHUANCHU

structure : Shut off

media : Oil

customized support : OEM, ODM, OBM

Fuction : Prevent leakage

Body material : stainless steel

Connection : Flange

Nominal diameter : DN100

Nominal pressure : 0-0.6Mpa

Opening method : Pneumatic

weight : 13.5kg

Design temperature : -20°-+180°

Medium : light fuel

Sealing material : Nitrile rubber, fluorine rubber

Packaging Details : Wooden box

Delivery Time : 7-30 days

Payment Terms : T/T

MOQ : 1

Supply Ability : Meet large-scale orders

Contact Now

PRODUCT DESCRIBE

Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve

I. Product Introduction

The stainless steel emergency shut-off valve, also known as the underwater valve, is installed at the bottom of the tank car. The valve is sealed inside the tank, and there is no cut-off groove on the valve body. When subjected to strong collision, the valve body will break at the flange, separating the tank body and the bottom pipeline, becoming an independent sealed tank body to prevent liquid leakage and greatly improve transportation safety. It meets the relevant requirements of GB/T932-2018 standard and is a pipe fitting component for bottom loading and unloading of tank cars. It is suitable for transporting light fuel tanks and cannot be installed in highly corrosive liquids.

II.Product Parameters

Body material	stainless steel 304/C4/316L
Nominal diameter	DN100
Nominal pressure	0.6Mpa
weight	13.5kg
design tempresure	-20°~+180°
appliable medium	chemical material

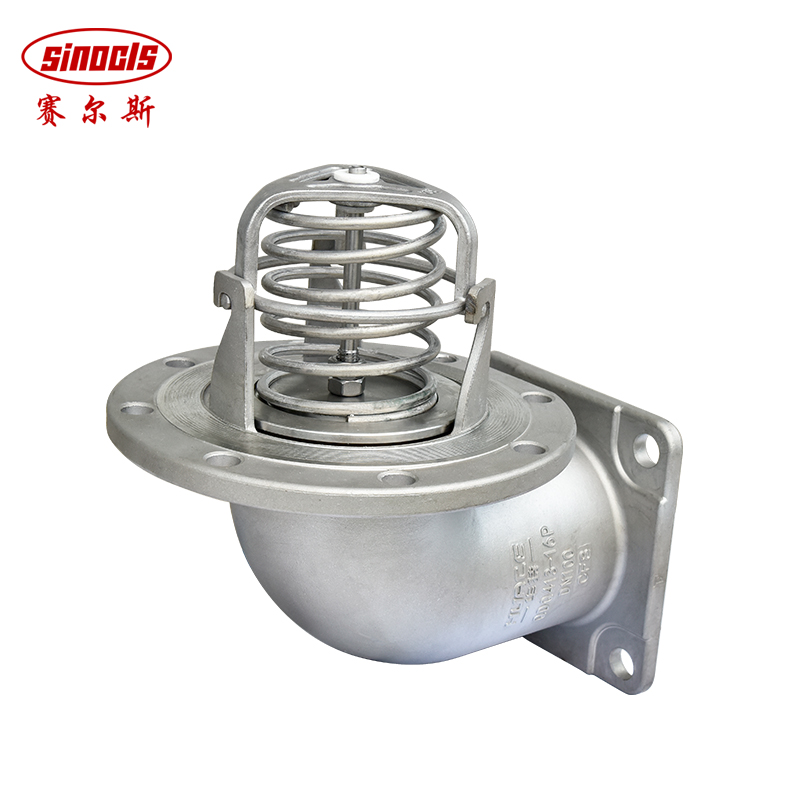

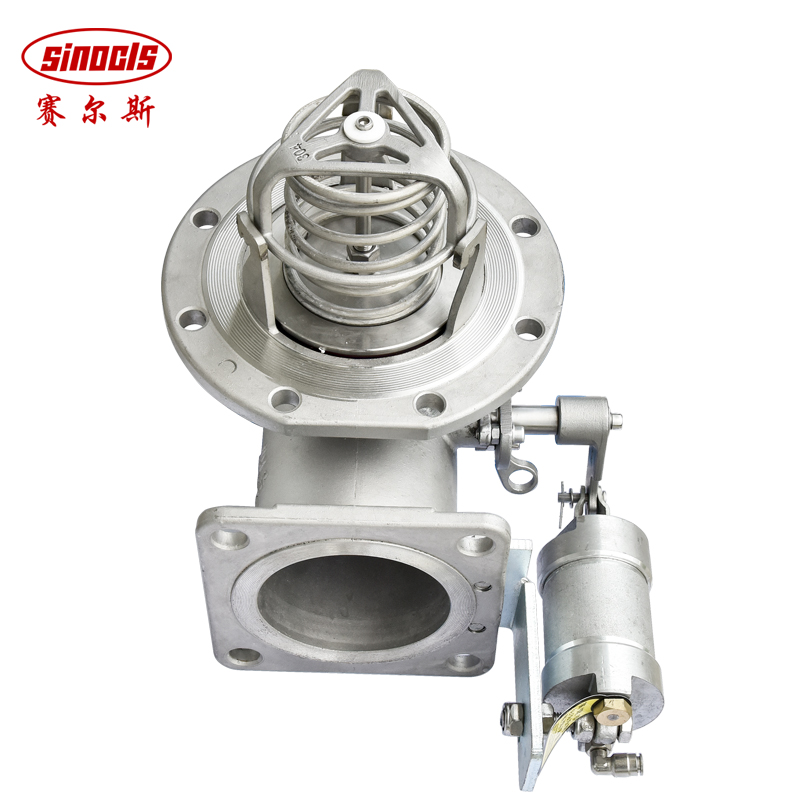

III.Product Pictures

OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized

Company profile

Hubei Huate special equipment Co., Ltd., founded in 2009, is located in Suizhou, the capital of special vehicles in China. It is a professional enterprise integrating R & D, casting, processing and sales of special auto parts and special vehicles. The products have high popularity and influence in petroleum, chemical, thermal, metallurgy, shipbuilding, medicine, food, transportation and other industries, and the products sell well in domestic and foreign markets. The company covers an area of 18000 square meters and a plant area of more than 9000 square meters. It has more than 200 sets of processing, production and testing equipment. At present, there are more than 90 employees and more than 30 technical backbone and R & D personnel. With an annual production of 35000 sets of special auto parts, it is a high-quality supporting supplier for domestic large-scale atmospheric dangerous goods tank truck and powder material transport vehicle enterprises. OBM Stainless Steel 304 4 Inch Pneumatic Emergency Bottom Valve Customized
