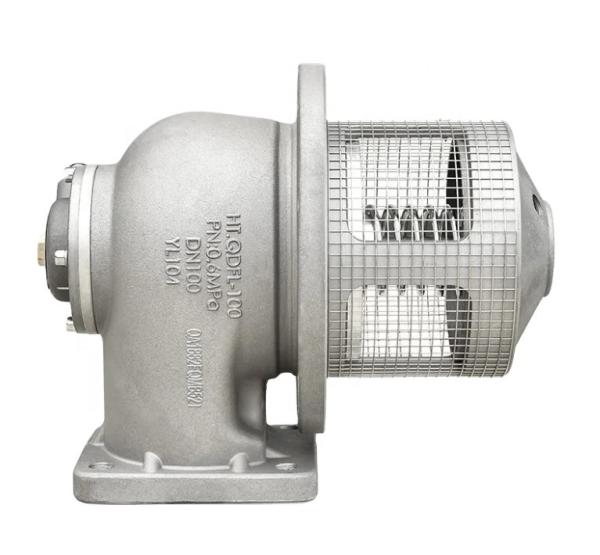

4 inch Aluminum Alloy Pneumatic Emergency Shut Off Valve Nominal Pressure 0-0.6Mpa

Name: 4 inch Aluminum Alloy Pneumatic Emergency Shut Off Valve Nominal Pressure 006Mpa
Brand: HUATE
Price: 80 USD

China 4 inch Aluminum Alloy Pneumatic Emergency Shut Off Valve Nominal Pressure 0-0.6Mpa factory

Place of Origin : Hubei, China

Brand Name : HUATE

Price : $80/pieces 1-9 pieces

Type : hydraulic tool

Warranty : 1year

Fuction : Prevent leakage

Body material : aluminium alloy

Connection : Flange

Nominal diameter : 4inch

Nominal pressure : 0-0.6Mpa

Opening method : Pneumatic

weight : 7kg

Design temperature : -20°-+70°

Medium : light fuel

Sealing material : Nitrile rubber, fluorine rubber

Packaging Details : Wooden box

Delivery Time : 7-30 days

Payment Terms : T/T

MOQ : 1

Supply Ability : Meet large-scale orders

Contact Now

PRODUCT DESCRIBE

Aluminum alloy pneumatic emergency shut-off valve

I. Product Introduction

The emergency shut-off valve, also known as the underwater valve, is installed at the bottom of the tank car. The valve is sealed inside the tank, and there is no cut-off groove on the valve body. When subjected to strong collision, the valve body will break at the flange, separating the tank body and the bottom pipeline, becoming an independent sealed tank body to prevent liquid leakage and greatly improve transportation safety. It meets the relevant requirements of GB/T932-2018 standard and is a pipe fitting component for bottom loading and unloading of tank cars. It is suitable for transporting light fuel tanks and cannot be installed in highly corrosive liquids.

4 inch Aluminum Alloy Pneumatic Emergency Shut Off Valve Nominal Pressure 0-0.6Mpa

II. Product parameters

Size	4 inch
Working temperature	-20 ~ +70 degree
material	Alumiun Alloy
Pressure	0.6 mpa
Weight	7kg

III. Performance and characteristics

1. Material: The main body is made of light aluminum alloy, which is integrally molded by low-pressure casting, light, strong and durable.
2. Corrosion resistance: The surface is treated by hard oxidation, which has good oxidation resistance and wear resistance.
3. High flow rate: Reasonable structural design to ensure large flow rate.
4. Emergency cut-off: When subjected to strong collision, the valve body breaks at the cut-off groove, and the tank body is kept sealed, effectively preventing oil leakage.

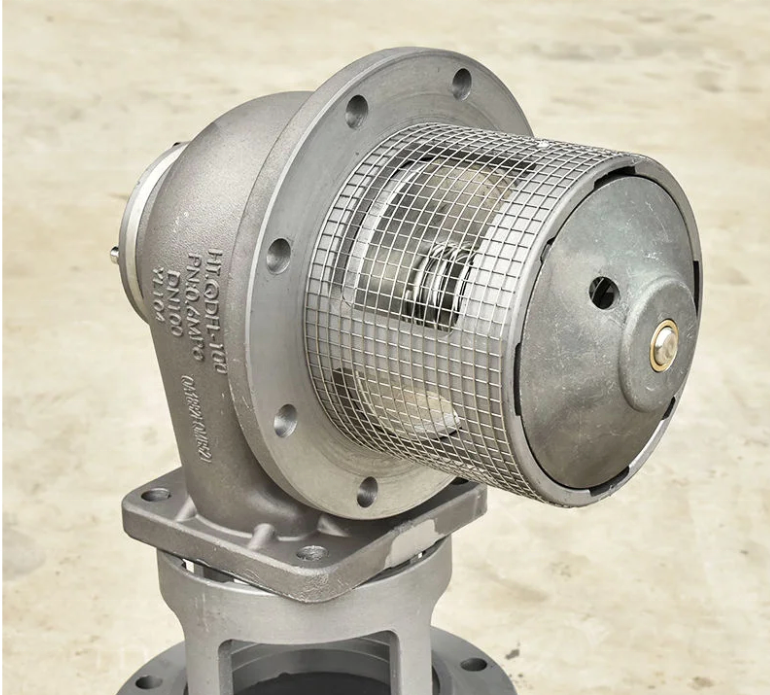

IV. Product picture

V. Maintenance

1. Remove the filter screen: When transporting thick oil products (such as crude oil), the filter screen on the valve can be removed to avoid affecting the flow rate.
2. Cylinder maintenance: In case of oil leakage at the interface, replace the seals in the piston cylinder.
3. Maintenance: Check whether the air inlet pipe is damaged from time to time, so as to avoid the valve cannot be opened normally due to air pipe problems.
4. Emergency treatment: If the valve cannot be opened by air intake under unexpected circumstances, the emergency bolt on the bottom piston cylinder can be unscrewed, and a hexagonal bolt with the same specification and a length of 10cm can be screwed into the screw opening, and then the screw can be slowly screwed in until the valve is opened.

4 inch Aluminum Alloy Pneumatic Emergency Shut Off Valve Nominal Pressure 0-0.6Mpa
