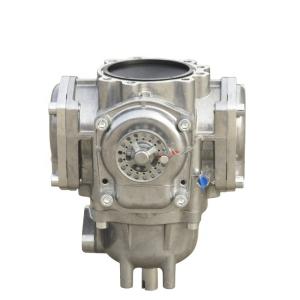

1 Inch Positive Displacement Pipeline Flow Meter Customizable

Price : $920-1,050/pieces

application : oil tank truck

port size : 1inch

warranty : 1 year

place of origin : Hubei, China

model number : HT.RJ01

power : Manual

temperature of media : Normal Temperature

brand name : CHUANCHU

structure : Check

media : Oil

customized support : OEM, ODM, OBM

Product name : Flow Meter

Body material : meter

Design temperature : -40°-+55°

Color : Customized Color

Medium : gasoline/Kerosene/ Paraffin , Diesel

Weight : 28kg

Packaging Details : Wooden box

Delivery Time : 7-30 days

Payment Terms : T/T

MOQ : 1

Supply Ability : Meet large-scale orders

Contact Now

PRODUCT DESCRIBE

1 inch Positive Displacement Pipeline Flow Meter for Sale

I. Product Introduction

M series flowmeter has a simple and effective metering design, which consists of a frame and three rotors rotating in the meter. There is no metal-to-metal contact in flow tank , eliminate any degradation in accuracy and provide long service life. The rotor is supported by bearings inserted in two bearing discs, and at the end of each rotor shaft is A timing gear. Then the timing rotation between each rotor will be transferred from the scale adjuster to the register, which will produce consistent and high accurate measurement.

II. Product parameters

Product Name	1" Positive Displacement Flow Meter
Model No.	HT.RJ01
Body Meterial	meter
Size	1"
Medium	Gasoline, Kerosene/ Paraffin , Diesel
Weight	28kg

III. Performance and characteristics

1. Material: The main body is made of light aluminum alloy, which is integrally molded by low-pressure casting, light, strong and durable.
2. Corrosion resistance: The surface is treated by hard oxidation, which has good oxidation resistance and wear resistance.
3. High flow rate: Reasonable structural design to ensure large flow rate.
4. Emergency cut-off: When subjected to strong collision, the valve body breaks at the cut-off groove, and the tank body is kept sealed, effectively preventing oil leakage.

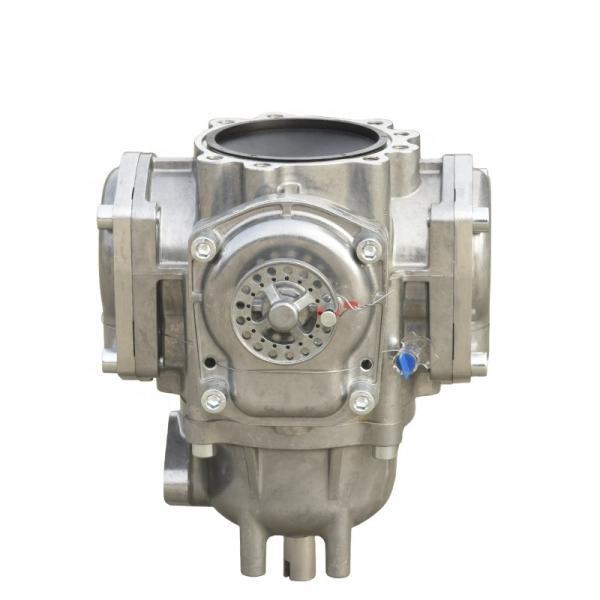

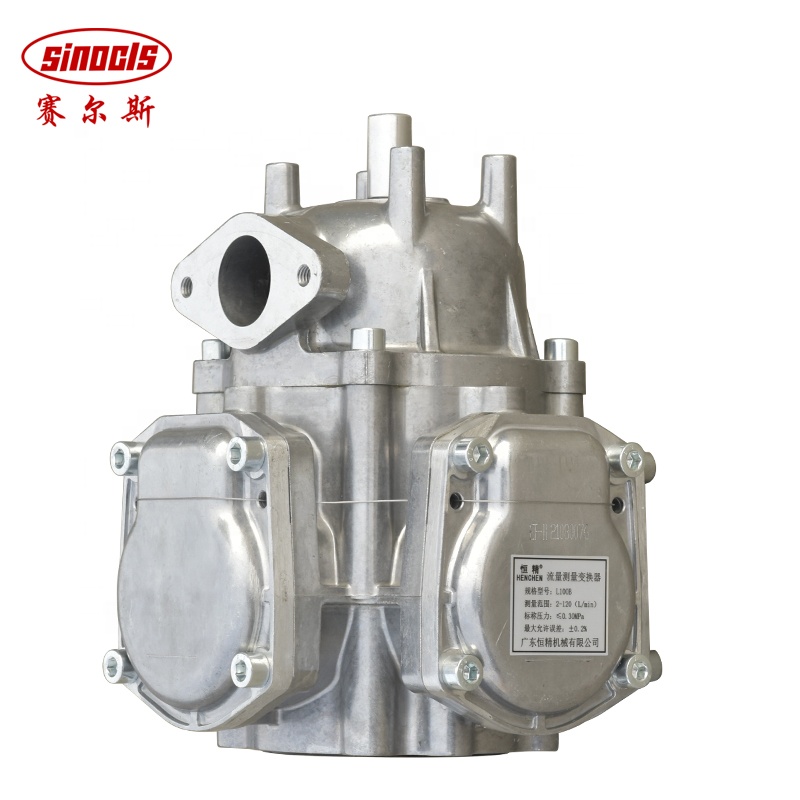

IV. Product Pictures

V. Maintenance

1. Remove the filter screen: When transporting thick oil products (such as crude oil), the filter screen on the valve can be removed to avoid affecting the flow rate.
2. Cylinder maintenance: In case of oil leakage at the interface, replace the seals in the piston cylinder.
3. Maintenance: Check whether the air inlet pipe is damaged from time to time, so as to avoid the valve cannot be opened normally due to air pipe problems.
4. Emergency treatment: If the valve cannot be opened by air intake under unexpected circumstances, the emergency bolt on the bottom piston cylinder can be unscrewed, and a hexagonal bolt with the same specification and a length of 10cm can be screwed into the screw opening, and then the screw can be slowly screwed in until the valve is opened.

1 Inch Positive Displacement Pipeline Flow Meter Customizable

Company profile

Hubei Huate special equipment Co., Ltd., founded in 2009, is located in Suizhou, the capital of special vehicles in China. It is a professional enterprise integrating R & D, casting, processing and sales of special auto parts and special vehicles. The products have high popularity and influence in petroleum, chemical, thermal, metallurgy, shipbuilding, medicine, food, transportation and other industries, and the products sell well in domestic and foreign markets. The company covers an area of 18000 square meters and a plant area of more than 9000 square meters. It has more than 200 sets of processing, production and testing equipment. At present, there are more than 90 employees and more than 30 technical backbone and R & D personnel. With an annual
production of 35000 sets of special auto parts, it is a high-quality supporting supplier for domestic large-scale atmospheric dangerous goods tank truck and powder material transport vehicle enterprises.
