4 Inch Stainless Steel API Tanker Truck Adapter Loading and Unloading Valve with 0.6Mpa Pressure

Name: 4 Inch Stainless Steel API Tanker Truck Adapter Loading and Unloading Valve with 06Mpa Pressure
Brand: CHUANCHU
Price: 298 USD

Place of Origin : Hubei, China

Brand Name : CHUANCHU

Model Number : HT.XYF806-100

Price : $298/units 1-49 units

pump : /

Material : Stainless Steel

Power : /

Accuracy : /

Nozzle : /

ambient temperature : /

Working Voltage : /

Flow Rate : /

Warranty : 1 year

Type : European standard accessories

norminal diameter : DN100

norminal pressure : 0.6Mpa

opening method : mannual

body material : stainless steel

weight : 11kg

design tempresure : -20°~+70°

Applicable media : light fuel

sealing material : Nitrile rubber, Fluoro rubber

Use : unloading valve

Application : oil tank truck

Packaging Details : Wooden box

Delivery Time : 7-30 days

Payment Terms : T/T

MOQ : 1

Supply Ability : Meet large-scale orders

Contact Now

4 Inch Stainless Steel API Tanker Truck Adapter Loading and Unloading Valve

I. Product Introduction
Stainless steel oil drain valve is a specialized oil drain valve for foreign trade exports, equipped with a mirror for easy observation. The oil drain valve, also known as API dry quick connector, is installed at the bottom of the tank and is a key product for achieving fast and leak free bottom loading and unloading. It is used for loading and unloading light fuels such as diesel gasoline and kerosene, and cannot be used for highly corrosive acidic and alkaline liquids.

II. Product Parameters

Size	4 inch
Working temperature	-20 to 70 degree
material	stainless steel
Pressure	0.6 mpa
Weight	11 kg
flow rate	2500 L/MIN
Seal Material	Nitrile rubber, fluorine rubber
OEM	Accpet
Medium	Light Fuel Oil

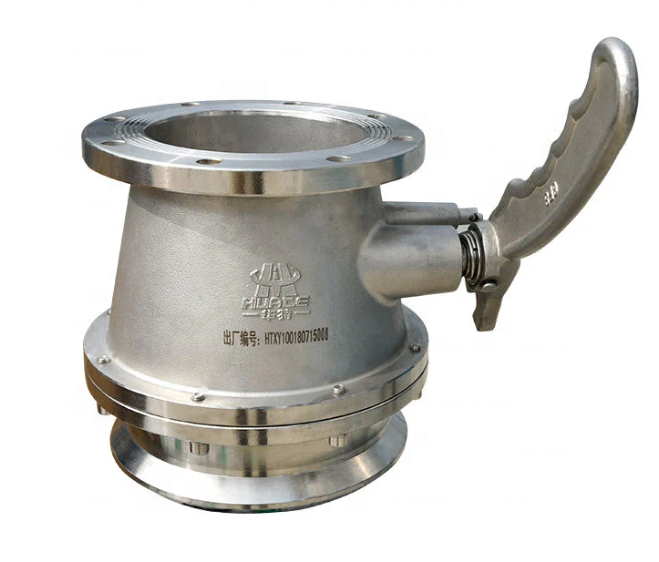

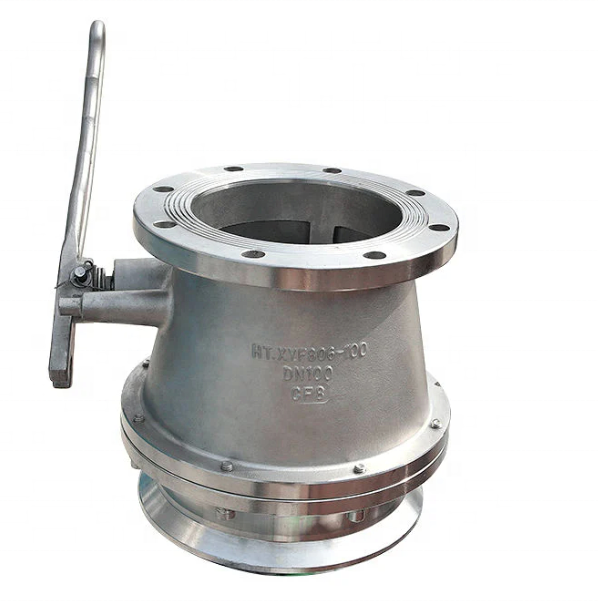

III.Product Pictures

4 Inch Stainless Steel API Tanker Truck Adapter Loading and Unloading Valve with 0.6Mpa Pressure

Company Profile

Size	4 inch
Working temperature	-20 to 70 degree
material	Alumium Alloy
Pressure	0.6 mpa
Weight	6 kg
flow rate	2500 L/MIN
Seal Material	Nitrile rubber, fluorine rubber
OEM	Accpet
Medium	Light Fuel Oil
